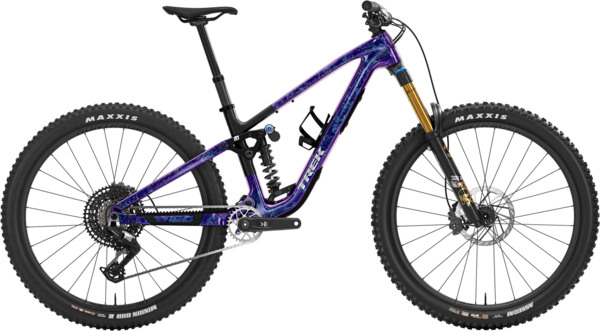

Trek Fuel LX 9.8 Eagle 90 Gen 7

Trek Fuel LX 9.8 Eagle 90 Gen 7
$6,199.99
Color: Purple Phaze/Amethyst Marble
Size: Large
Wheel Size: 29-inch
Please select options Unavailable

Details

Fuel LX 9.8 Eagle 90 is a rowdy carbon trail bike ready to slay steep descents and blast through wheel-gobbling terrain. Its OCLV Mountain Carbon frame partners with a Fox Factory 38 fork and DHX2 coil shock (160mm rear, 170mm front) for going all-out on the wiliest lines on the mountain. A mechanical SRAM Eagle 90 transmission gives you reliable shifts without the fuss of electronics, and 4-piston SRAM Maven Bronze brakes deliver power you can count on.

Frame SizeSmallMediumLargeX-LargeXX-Large
Wheel size (in) 29" 29" 29" 29" 29"
Seat tube (cm / in) 37.0 / 14.57 40.0 / 15.75 42.0 / 16.54 45.5 / 17.91 47.5 / 18.70
Seat tube angle (degree) 71.5 71.5 71.5 71.6 71.6
Effective seat tube angle (degree) 77.5 77.2 76.4 75.9 75.4
Head tube length (cm / in) 9.5 / 3.74 11.0 / 4.33 12.5 / 4.92 14.0 / 5.51 15.5 / 6.10
Head angle (degree) 63.4 63.4 63.4 63.5 63.5
Effective top tube (cm / in) 55.2 / 21.73 58.6 / 23.07 62.1 / 24.45 65.5 / 25.79 68.4 / 26.93
Bottom bracket height (cm / in) 34.7 / 13.66 34.7 / 13.66 34.7 / 13.66 34.6 / 13.62 34.6 / 13.62
Bottom bracket drop (cm / in) 2.6 / 1.02 2.7 / 1.06 2.7 / 1.06 2.7 / 1.06 2.7 / 1.06
Chainstay length (cm / in) 43.7 / 17.20 43.7 / 17.20 44.2 / 17.40 44.7 / 17.60 45.2 / 17.80
Offset (cm / in) 4.4 / 1.73 4.4 / 1.73 4.4 / 1.73 4.4 / 1.73 4.4 / 1.73
Trail (cm / in) 13.8 / 5.43 13.8 / 5.43 13.7 / 5.39 13.7 / 5.39 13.7 / 5.39
Wheelbase (cm / in) 120.0 / 47.24 123.7 / 48.70 127.3 / 50.12 131.0 / 51.57 134.1 / 52.80
Standover (cm / in) 75.0 / 29.53 75.2 / 29.61 75.9 / 29.88 76.5 / 30.12 77.3 / 30.43
Frame reach (cm / in) 41.8 / 16.46 44.8 / 17.64 47.3 / 18.62 49.8 / 19.61 51.8 / 20.39
Frame stack (cm / in) 61.9 / 24.37 63.3 / 24.92 64.7 / 25.47 66.1 / 26.02 67.4 / 26.54
Frame SizeSmallMediumLargeX-LargeXX-Large
Rider height (cm / in) 155–165 / 61–65 165–177 / 65–70 177–188 / 70–74 188–195 / 74–77 195–203 / 77–80
Inseam (cm / in) 74–78 / 29–31 79–83 / 31–33 84–89 / 33–35 89–91 / 35–36 91–97 / 36–38

Specs

Frame OCLV Mountain Carbon, internal storage, ZS headset, adjustable leverage rate, guided internal routing, interchangeable alloy rocker link, interchangeable lower shock mount, downtube guard, shuttle guard, BSA 73, ISCG 05, ABP, UDH, Boost148, adaptable travel 145mm-160mm
Fork Fox Factory 38, Float EVOL air spring, GRIP X2 damper, 44mm offset, Boost 110, 15mm Kabolt X axle, 170mm travel
Rear Shock Fox DHX2, 205mm x 65mm
Wheels Front: Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle, 29'' Rear: Bontrager Line Comp 30, Tubeless Ready, Rapid Drive 108, 6-bolt, SRAM XD freehub, Boost148, 12mm thru axle, 29''
Tires Front: Maxxis Assegai, tubeless ready, 3C, EXO+ casing, MAXXGRIP, folding bead, 29x2.5'' Rear: Maxxis Minion DHR II, tubeless ready, 3C, EXO+ casing, MAXXTERRA, folding bead, 29x2.5''
Brakes SRAM Maven Bronze 4-piston hydraulic disc
Crankset SRAM Eagle 90, DUB, 30T steel, T-Type, 55mm chainline, 170mm length
Bottom Bracket SRAM DUB MTB Wide, 73mm, BSA threaded
Cassette/Freewheel SRAM Eagle XS-1275, T-Type, 10-52, 12 speed
Rear Derailleur SRAM Eagle 90, T-Type
Rotors Front: SRAM HS2, 6-bolt, 180mm Rear: SRAM HS2, 6-bolt, 200mm
Handlebars Race Face ERA, carbon, 35mm, 40mm rise, 800mm width
Chain SRAM GX Eagle, T-Type, 12 speed
Tape/Grips Trek Line Elite, lock-on
Stem Bontrager Elite, 35mm, 0 degree, 45mm length
Seatpost Small: Bontrager Line Dropper 150mm travel, MaxFlow, internal routing 34.9mm, 410mm length Medium: Bontrager Line Dropper 170mm travel, MaxFlow, internal routing 34.9mm, 450mm length Large - X-Large: Bontrager Line Dropper 200mm travel, MaxFlow, internal routing 34.9mm, 515mm length
Saddle Verse Short Pro, steel rails, 145mm width

* Subject to change without notice.

Part Numbers

Option UPC MPN Store SKU
Purple Phaze/Amethyst Marble / Large / 29-inch 197216278030 5340610 FUE427517997
