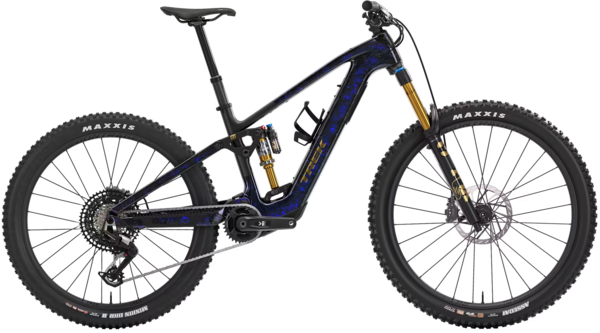

Trek Fuel+ MX 9.8 Eagle 90 Gen 2

Trek Fuel+ MX 9.8 Eagle 90 Gen 2
$9,499.99
Color: Gloss Navy Smoke/Matte Trek Black
Size: Medium
Wheel Size: 29-inch front / 27.5-inch rear
Please select options Unavailable

Details

Fuel+ MX 9.8 Eagle 90 is a chaos-craving carbon e-MTB for chasing side hits, lap after lap. It starts off with an OCLV Mountain Carbon frame with TQ's HPR60 motor, speced with a Fox Factory suspension package (150mm rear, 160mm front), and MX wheels for getting wild on the trail. A mechanical SRAM Eagle 90 transmission gives you reliable shifts without the fuss of electronics, and 4-piston SRAM Maven Bronze brakes deliver power you can count on.

*All measurements provided in cm unless otherwise noted.

Sizes:
SizeSmallMediumLargeX-LargeXX-Large
Wheel size 29"/27.5" 29"/27.5" 29"/27.5" 29"/27.5" 29"/27.5"
A — Seat tube 37 40 42 45.5 47.5
B — Seat tube angle 72.3° 72.3° 72.3° 72.3° 72.3°
Effective seat tube angle 77.7° 77.5° 77.0° 76.6° 76.1°
C — Head tube length 11 11 12.5 14 15.5
D — Head angle 64.2° 64.2° 64.2° 64.2° 64.2°
E — Effective top tube 56 59 61.9 65.2 68.2
F — Bottom bracket height 34.3 34.3 34.3 34.3 34.3
G — Bottom bracket drop 3.1 3.1 3.1 3.1 3.1
H — Chainstay length 44 44 44 44.4 44.9
I — Offset 4.4 4.4 4.4 4.4 4.4
J — Trail 13.2 13.2 13.2 13.2 13.2
K — Wheelbase 120.4 123.4 126.6 130.1 133.2
L — Standover 75.8 75.2 75.5 75.9 76.9
M — Frame reach 42.6 45.6 48.2 50.7 52.7
N — Frame stack 62.7 62.7 64.1 65.4 66.8
Sizes:
SizeSmallMediumLargeX-LargeXX-Large
Rider Height 155 - 165 cm / 5'1" - 5'5" 165 - 177 cm / 5'5" - 5'10" 177 - 188 cm / 5'10" - 6'2" 188 - 195 cm / 6'2" - 6'5" 195 - 203 cm / 6'5" - 6'8"
Inseam 74 - 78 cm / 29" - 31" 79 - 83 cm / 31" - 33" 84 - 89 cm / 33" - 35" 89 - 91 cm / 35" - 36" 91 - 97 cm / 36" - 38"

Specs

Frame OCLV Mountain Carbon, removable battery, ZS headset, adjustable leverage rate, guided internal routing, interchangeable alloy rocker link, interchangeable lower shock mount, downtube guard, shuttle guard, ABP, UDH, Boost148, adaptable travel 145mm-160mm
Fork Fox Factory 36, Float EVOL air spring, GRIP X2 damper, 44mm offset, Boost 110, 15mm Kabolt X axle, 160mm travel
Rear Shock Fox Factory Float X, 205mm x 60mm
Wheels Front: Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle, 29''
Rear: Bontrager Line Comp 30, Tubeless Ready, Rapid Drive 108, 6-bolt, Shimano MicroSpline freehub, Boost148, 12mm thru axle, 27.5''
Tires Front: Maxxis Assegai, tubeless ready, 3C, EXO+ casing, MAXXGRIP, folding bead, 29x2.5''
Rear: Maxxis Minion DHR II, tubeless ready, 3C, EXO+ casing, MAXXTERRA, folding bead, 27.5x2.5''
Crankset SRAM Eagle 90 e-MTB crank arms, 160mm length
Chainrings SRAM T-Type, 32T, alloy
Shifters SRAM Eagle 90, 12 speed
Rear Derailleur SRAM Eagle 90, T-Type
Cassette/Freewheel SRAM Eagle XS-1275, T-Type, 10-52, 12 speed
Chain SRAM GX Eagle, T-Type, 12 speed
Brakes SRAM Maven Bronze 4-piston hydraulic disc
Rotors SRAM HS2, 6-bolt, 200mm
Handlebars Race Face ERA, carbon, 35mm, 40mm rise, 800mm width
Tape/Grips Trek Line Elite, lock-on
Stem Bontrager Elite, 35mm, 0 degree, 45mm length
Seatpost Size: S Bontrager Line Dropper, 150mm travel, MaxFlow, internal routing, 34.9mm, 410mm length Size: M Bontrager Line Dropper, 170mm travel, MaxFlow, internal routing, 34.9mm, 450mm length Size: XL, L, XXL Bontrager Line Dropper, 200mm travel, MaxFlow, internal routing, 34.9mm, 515mm length
Saddle Verse Short Comp, steel rails, 145mm width
Pedals Sold Separately
Motor TQ-HPR60, 60 Nm, 300 watt maximum continuous rated power, 350 watt peak power
Battery TQ 580Wh
Controller/Display TQ color LED display with Bluetooth & ANT+ connectivity
Charger TQ 4A charger

* Subject to change without notice.

Videos

Part Numbers

Option UPC MPN Store SKU
Gloss Navy Smoke/Matte Trek Black / Medium / 29-inch front / 27.5-inch rear 197216280187 5340970 FUE473452162
