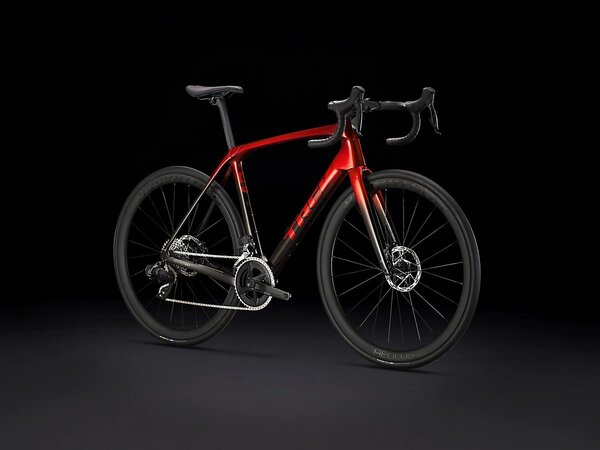

Trek Domane SLR 6 eTap Gen 4
Details
Domane SLR 6 is an ultralight carbon endurance road bike with cherry-picked components made for a fast, high-performance ride. You get our highest level OCLV Carbon frame with rear IsoSpeed, a wireless electronic SRAM Rival drivetrain for precision shifting, and OCLV Carbon wheels. Plus, it has an easy-access storage compartment for stowing ride essentials, and versatile 38c tire clearance to keep you floating on rough roads and light gravel.
It's right for you if...
You're looking for the real advantage of a bike that can soar on group rides, ride fast on long race days, and keep going when the road turns to gravel. You want the most advanced endurance road bike frame we offer, with the added benefit of a wireless electronic SRAM Rival eTap drivetrain for fast, reliable shifting in any condition.
The tech you get
An ultralight and refined 800 Series OCLV Carbon frame and fork with rear IsoSpeed, integrated internal storage, and top tube mounts. It's equipped with a wireless SRAM 2x12 Rival eTap AXS electronic drivetrain, power meter cranks for monitoring performance metrics, powerful flat-mount disc brakes, Aeolus Pro 37 carbon wheels, and a Bontrager Pro IsoCore handlebar that reduces vibrations from the road by 20% over a standard carbon bar.
The final word
Our highest-end Domane carbon frame, with the precision shifting that comes only from wireless SRAM Rival eTap. You're getting tech that provides a real advantage in comfort, reliability, and speed during all-day adventures, competitive group rides, or long races.
Why you'll love it
- The sleek all-new 800 Series OCLV Carbon frame saves weight and gives you more free speed thanks to updated Kammtail tube shapes
- Wireless SRAM Rival eTap AXS drivetrain shifts clean and reliably when you need to count on it most
- Road-smoothing rear IsoSpeed absorbs fatiguing bumps in the road to keep you comfortable through the longest miles and hardest race days
- A sleek internal storage compartment gives you a versatile spot to stow tools and gear, while top tube mounts let you cleanly bolt on a bag for all day adventures
Size | Rider Height | Inseam |
---|---|---|
47 | 152 - 158 cm 5'0" - 5'2" |
71 - 75 cm 28" - 30" |
50 | 158 - 163 cm 5'2" - 5'4" |
74 - 77 cm 29" - 30" |
52 | 163 - 168 cm 5'4" - 5'6" |
76 - 79 cm 30" - 31" |
54 | 168 - 174 cm 5'6" - 5'9" |
78 - 82 cm 31" - 32" |
56 | 174 - 180 cm 5'9" - 5'11" |
81 - 85 cm 32" - 33" |
58 |
180 - 185 cm |
84 - 87 cm 33" - 34" |
60 | 185 - 190 cm 6'1" - 6'3" |
86 - 90 cm 34" - 35" |
62 | 190 - 195 cm 6'3" - 6'5" |
89 - 92 cm 35" - 36" |
Frame size number | 47 cm | 50 cm | 52 cm | 54 cm | 56 cm | 58 cm | 60 cm | 62 cm |
---|---|---|---|---|---|---|---|---|
Wheel size | 700c | 700c | 700c | 700c | 700c | 700c | 700c | 700c |
A- Seat tube | 42 | 45 | 47.5 | 50 | 52.5 | 54.8 | 56.7 | 58.6 |
B- Seat tube angle | 74.6° | 74.6° | 74.2° | 73.7° | 73.3° | 73.0° | 72.8° | 72.5° |
C- Head tube length | 11 | 13 | 14.5 | 16 | 17.5 | 19.5 | 22 | 24.5 |
D- Head angle | 71.0° | 71.1° | 71.3° | 71.3° | 71.9° | 72.0° | 72.1° | 72.1° |
E- Effective top tube | 50.9 | 51.9 | 53 | 54.2 | 55.4 | 56.7 | 57.9 | 59.3 |
G- Bottom bracket drop | 8 | 8 | 8 | 8 | 7.8 | 7.8 | 7.5 | 7.5 |
H- Chainstay length | 42 | 42 | 42 | 42 | 42 | 42.5 | 42.5 | 42.5 |
I- Offset | 5.3 | 5.3 | 5.3 | 5.3 | 4.8 | 4.8 | 4.8 | 4.8 |
J- Trail | 6.1 | 6 | 5.9 | 5.9 | 6.1 | 6 | 5.9 | 5.9 |
K- Wheelbase | 98.6 | 99.6 | 100.3 | 101 | 100.8 | 102.2 | 103.2 | 104.2 |
L- Standover | 68.6 | 71.6 | 73.5 | 75.4 | 77.6 | 79.6 | 81.7 | 83.5 |
M- Frame reach | 36.4 | 36.8 | 37.1 | 37.4 | 37.7 | 38 | 38.3 | 38.6 |
N- Frame stack | 52.7 | 54.6 | 56.1 | 57.5 | 59.1 | 61.1 | 63.2 | 65.6 |
Stem length | 70 | 80 | 90 | 90 | 100 | 100 | 110 | 110 |
Saddle rail height min (w/short mast) |
55.5 | 58.5 | 61.5 | 64 | 67 | 69 | 71 | 73 |
Saddle rail height max (w/short mast) |
62 | 65 | 68 | 70.5 | 73.5 | 75.5 | 77.5 | 79.5 |
Saddle rail height min (w/tall mast) |
58.5 | 61.5 | 64.5 | 67 | 70 | 72 | 74 | 76 |
Saddle rail height max (w/tall mast) |
65 | 68 | 71 | 73.5 | 76.5 | 78.5 | 80.5 | 82.5 |
Due to supply-chain issues, Specs are subject to change without notice.
Specs
Frame | 800 Series OCLV Carbon, IsoSpeed, internal storage, tapered head tube, internal cable routing, 3S chain keeper, fender mounts, flat mount disc, 142x12mm thru axle |
---|---|
Fork | Domane SLR carbon, tapered carbon steerer, internal brake routing, fender mounts, flat mount disc, carbon dropouts, 12x100mm thru axle |
Wheels |
Front: Bontrager Aeolus Pro 37, OCLV Carbon, Tubeless Ready, 37mm rim depth, 100x12mm thru axle Rear: Bontrager Aeolus Pro 37, OCLV Carbon, Tubeless Ready, 37mm rim depth, Shimano 11/12-speed freehub, 142x12mm thru axle |
Rims | Bontrager Aeolus Pro 37, OCLV Carbon, Tubeless Ready, 100x12mm thru axle |
Tires | Bontrager R3 Hard-Case Lite, Tubeless Ready, aramid bead, 120 tpi, 700x32c |
Bottom Bracket | SRAM DUB, T47 threaded, internal bearing |
Crankset |
Size: 47 SRAM Rival AXS Power Meter, 46/33, DUB spindle, 165mm length Size: 50, 52 SRAM Rival AXS Power Meter, 46/33, DUB spindle, 170mm length Size: 54, 56 SRAM Rival AXS Power Meter, 46/33, DUB spindle, 172.5mm length Size: 58, 60, 62 SRAM Rival AXS Power Meter, 46/33, DUB spindle, 175mm length |
Shifters | SRAM Rival eTap AXS, 12 speed |
Front Derailleur | SRAM Rival eTap AXS, braze-on |
Rear Derailleur | SRAM Rival eTap AXS |
Cassette/Freewheel | SRAM XG-1250, 10-36, 12 speed |
Chain | SRAM Rival, 12 speed |
Rotors | SRAM Paceline, rounded, centerlock, 160mm |
Handlebars |
Size: 47 Bontrager Pro IsoCore VR-SF, 38cm Size: 50, 52 Bontrager Pro IsoCore VR-SF, 40cm Size: 54, 56 Bontrager Pro IsoCore VR-SF, 42cm Size: 58, 60, 62 Bontrager Pro IsoCore VR-SF, 44cm |
Tape/Grips | Bontrager Supertack Perf tape |
Stem |
Size: 47 Bontrager RCS Pro, 7 degree, 70mm length Size: 50 Bontrager RCS Pro, 7 degree, 80mm length Size: 52, 54 Bontrager RCS Pro, 7 degree, 90mm length Size: 56, 58 Bontrager RCS Pro, 7 degree, 100mm length Size: 60, 62 Bontrager RCS Pro, 7 degree, 110mm length |
Seatpost |
Size: 47, 50, 52, 54, 56 Domane carbon seatpost, KVF2 shaping, 20mm offset, 280mm length Size: 58, 60, 62 Domane carbon seatpost, KVF2 shaping, 20mm offset, 320mm length |
Saddle |
Size: 47, 50, 52 Bontrager P3 Elite, short nose, 155mm width Size: 54, 56, 58, 60, 62 Bontrager P3 Elite, short nose, 145mm width |
Pedals | Sold separately |
Accessories & Extras | SRAM eTap battery pack (with charger), Bontrager BITS Internal Frame Storage Bag |
* Subject to change without notice.
Part Numbers
Option | UPC | MPN | Store SKU |
---|---|---|---|
Deep Smoke / 58cm | 768682504420 | 5280968 | DOM25210059E |
